01|APPLICATION

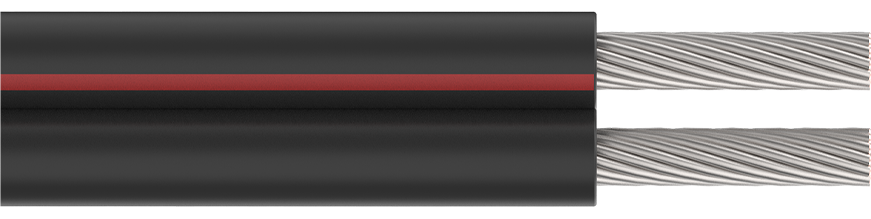

KUKA Cable®Solar PV Cable is specified cables for use in Pho otovoltaic (PV) Systems, in particular for installation at the Direct Current (d.c.) side. These cables are suitable for permanent t outdoor use for more than 25 years under variable demanding climate conditions. Relatively stringent requirements are e set for these products in line with the expected harsh usage conditions.

02| CHARACTERISTICS:

Voltage Rating Uo/U AC:1000/1000V DC:1500/1500V

Maximum Voltage (Umax) 1800V Test Voltage 6.5kVAC

Temperature Rating Fixed:-40Cto+90℃

Maximum Conductor Temperature +120C(for20000h) Minimum Bending Radius 5 X overall diameter

03 I FEATURES:

Service Life:25Years

CPR: Dca Class

Installation: Open Air Direct Burial On Conduit

04| PACKAGING AND QUANTITY

Guarantee 100m+ per drum if 100m per drum as we marked

Guarantee 500m+per drum if 500m per drum as we marked

05｜STANKARDS

06｜DIMENSIONS
